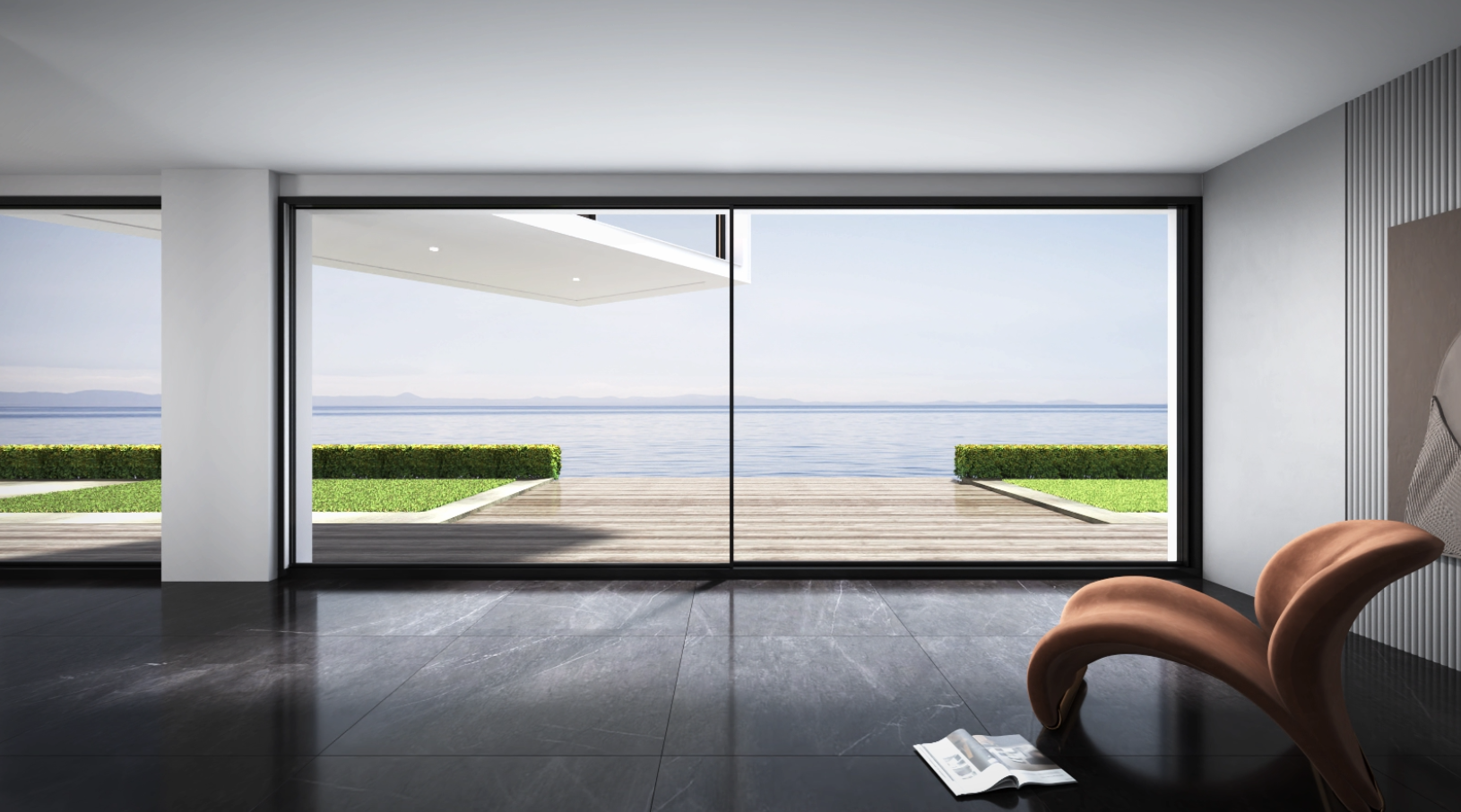

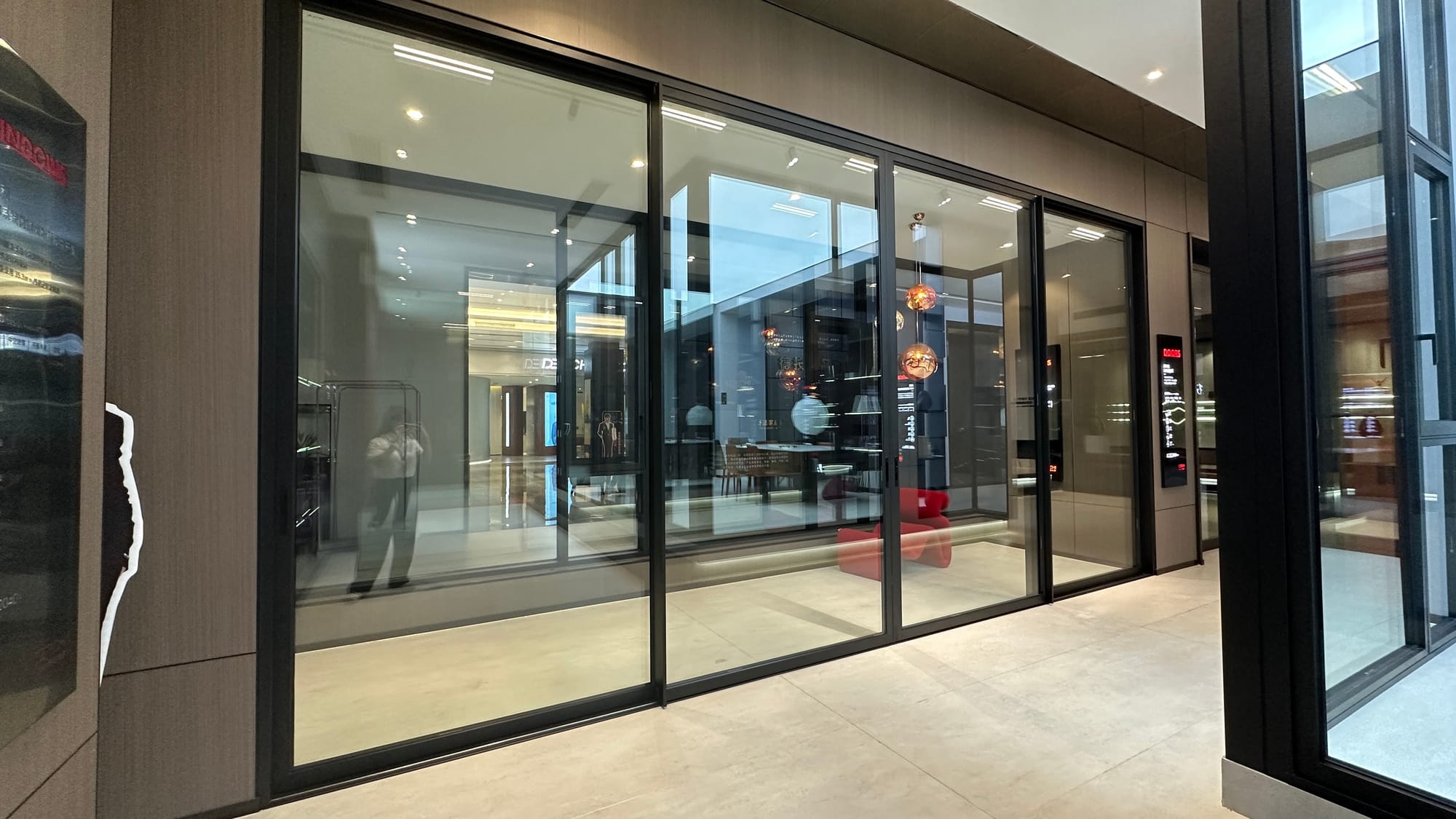

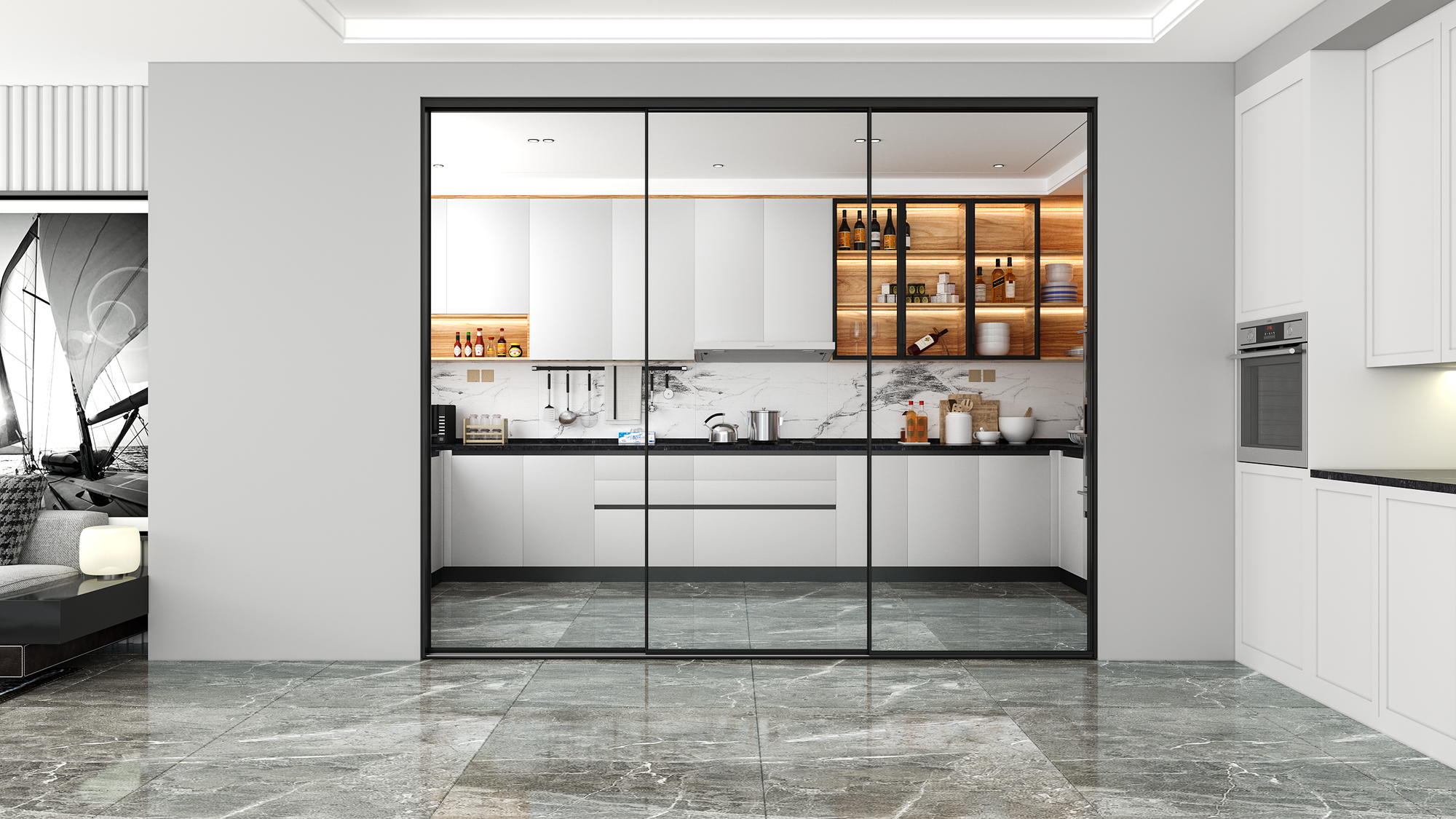

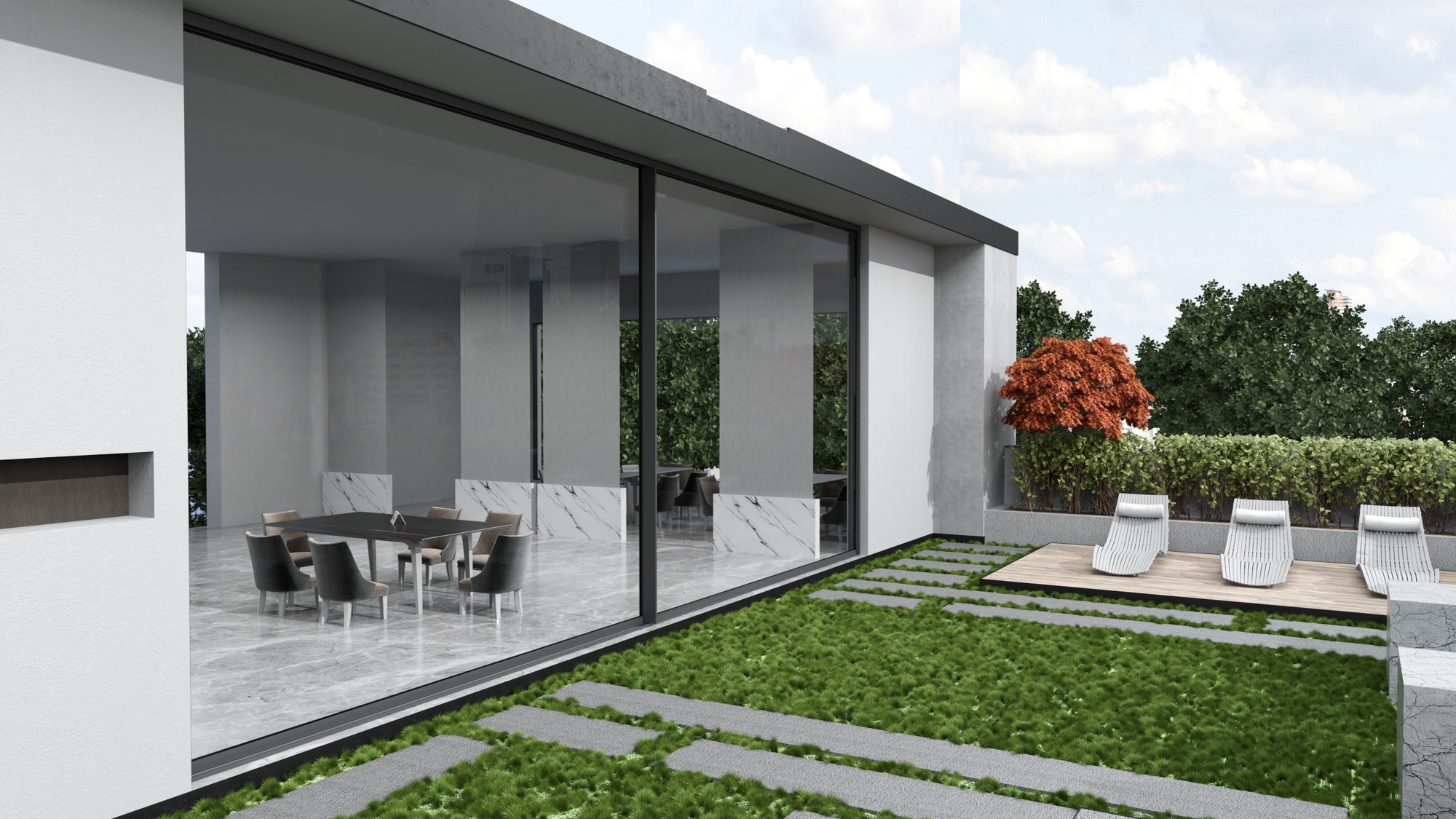

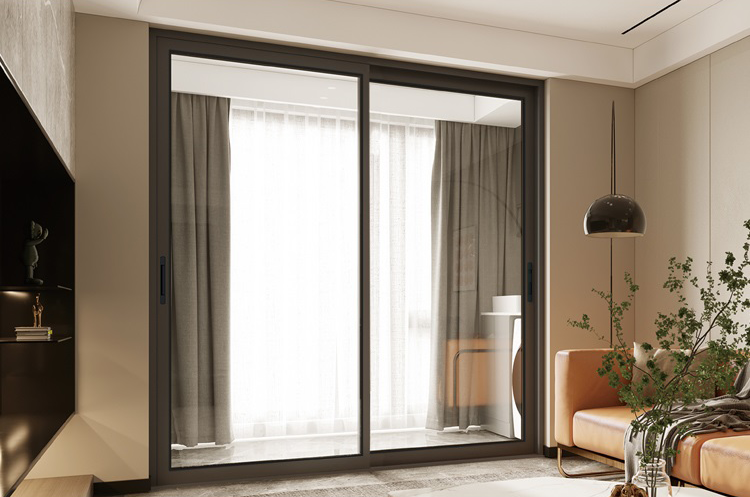

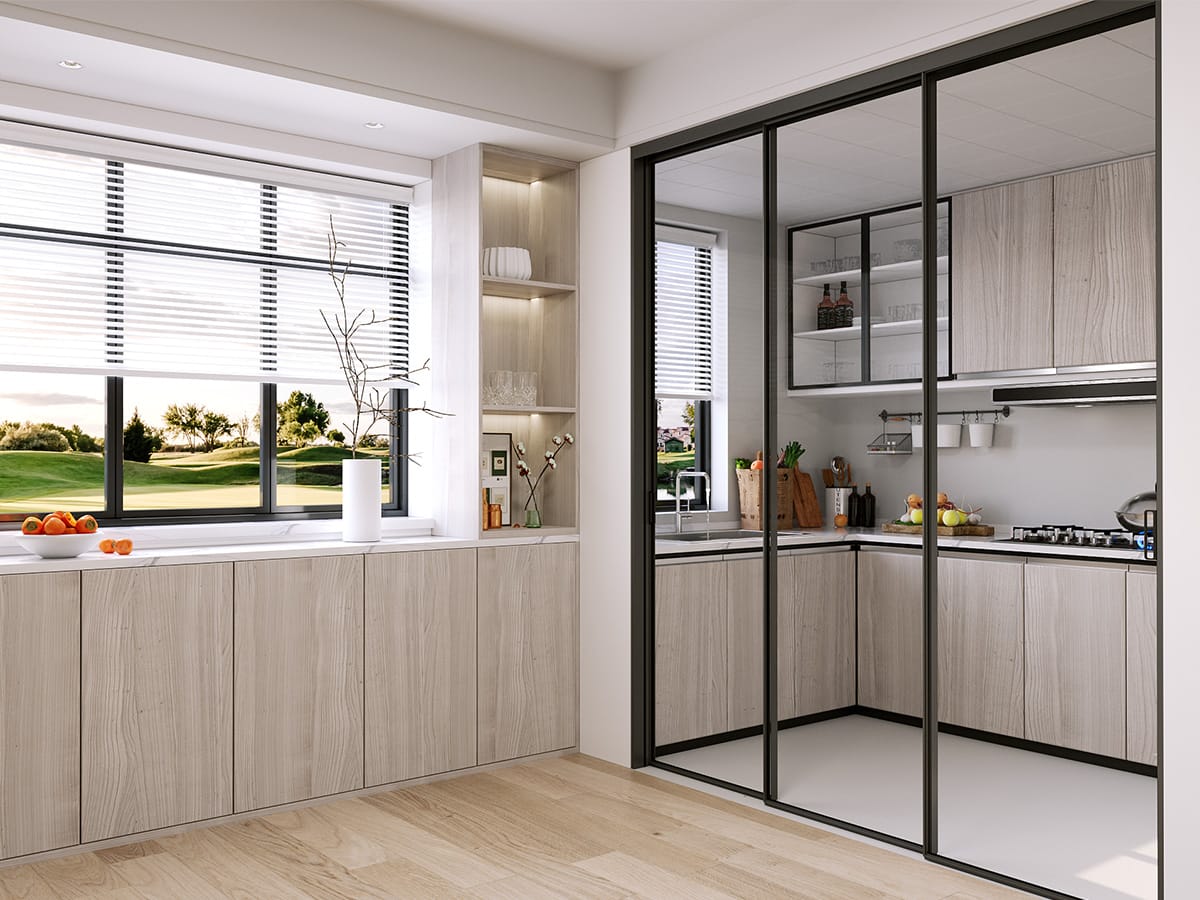

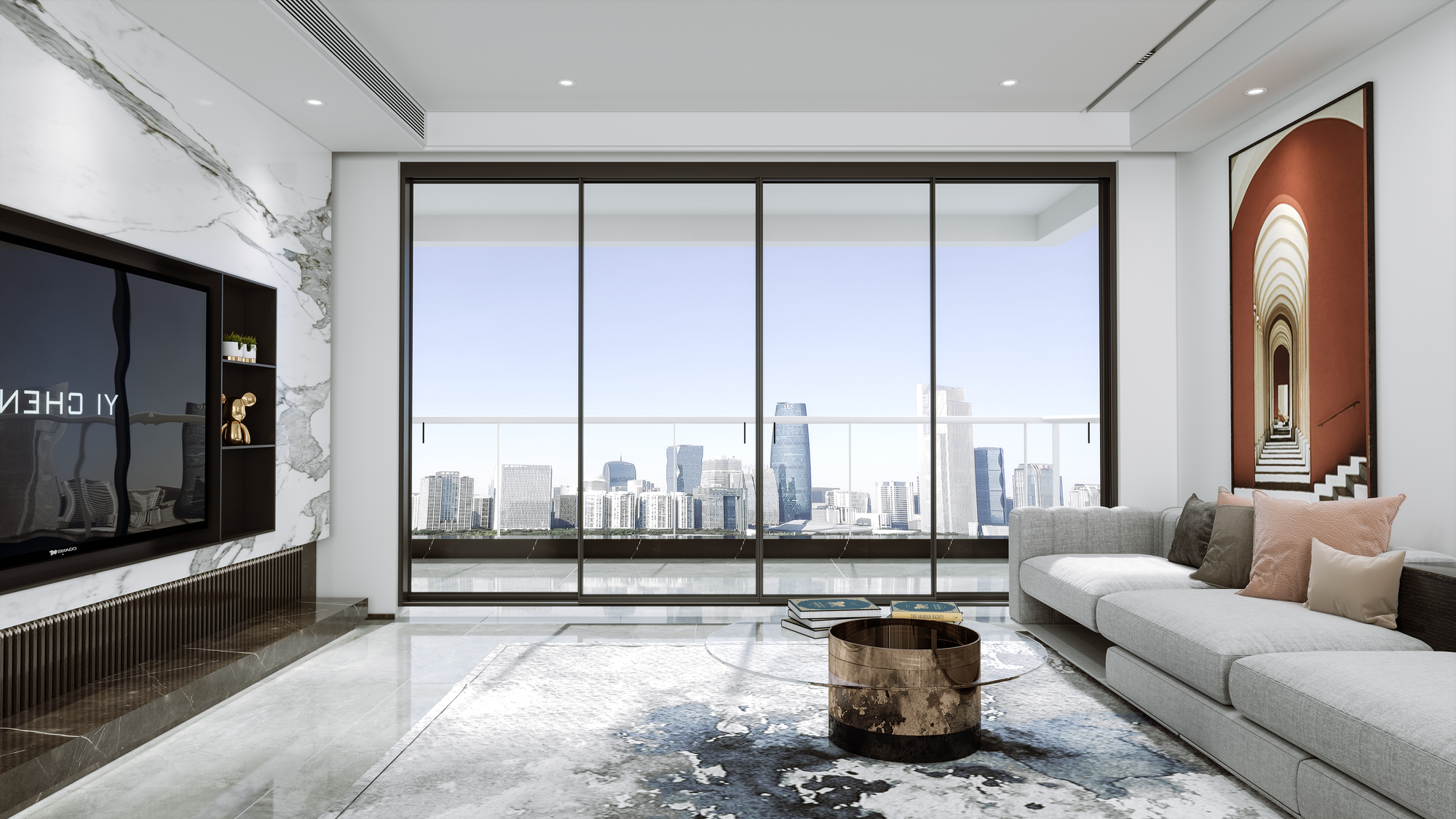

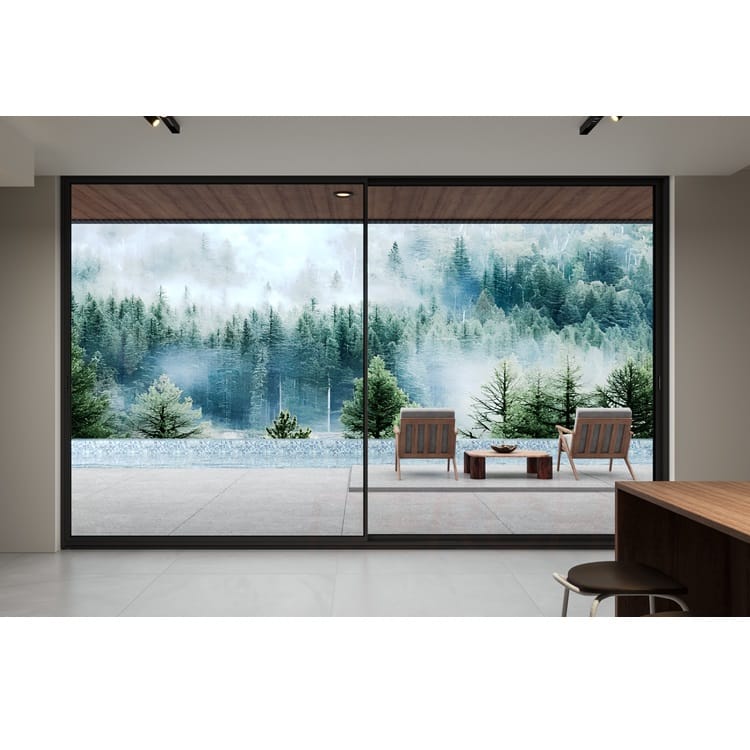

Sliding Doors
PRODUCT PARAMETES
- Water tightness: 450pa; 350pa; 300pa
- Air tightness: 4.5m³/(m·h); 3.0m³/(m·h)
- Wind pressure resistance: 5Kpa; 4.5Kpa
- Sound insulation performance: 35dB; 32dB; 30dB
- U-Factor(U.S./1-P): 0.39; 0.38; 0.28
- SHGC: 0.25; 0.22; 0.2
-
Glass: Double Tempered Glass with argon ags
5mm+18A+5mm;
5mm+20A+5mm;
5mm+27A+5mm;
6mm+25A+6mm;
8MM tempered glass
(PVDF Aluminum Strip Between double glass) -
Profile: 6063-T5 aluminum profile
-
Profile Thinckness:
Frame 1.3MM, door leaf 1.2MM;
Frame 1.3MM , door leaf 2.0MM;
Frame 1.8MM, door leaf 1.6MM;
Frame 2.0MM , door leaf 3.0MM;
Frame 2.2MM, door leaf 1.8MM -
Frame width:
Four tracks 105mm/ Five tracks 161mm;
Two tracks 103mm / Three tracks 149mm;
Two tracks 135mm/ Three tracks 205mm;
Two tracks 143mm / Three tracks 217mm;
Two tracks 135mm / Three tracks 233mm/ Four tracks 316mm -
Handle:
HOPPE One straight lock;
HOPPE Aluminum alloy hook lock/clasp;
Extremely narrow specialized aluminum alloy handle -
Lock point:
304 Stainless Steel Single Hook Lock;
Panoramic door dedicated one letter lock -
Hardware:
304 stainless steel single hook lock point lock seat;
Panoramic door integrated handle;
Customized silent two wheel pulley -
Opening Way: Two Tracks / three tracks/ four tracks / five tracks
-
Optional package: New 32 Pack / New 47 Pack / 70 Pack / 75 Pack / 100 Pack
-
Sealing material: EPDM rubber strip
-
Available Size:
Opening Panel ( Width:580-1200/Height:800-2600)
Opening Panel ( Width:580-1500/Height:800-2800);
Opening Panel (Width:600-1400/Height:800-2400);
Opening Panel ( Width:600-2500/Height:800-3000);
Opening Panel ( Width:1300-4000/Height:2000-6000)
PRODUCT PROCESS
- The entire window adopts internal and external gluing technology
- Embedded Design
- The lock point lock seat is made of stainless steel material
