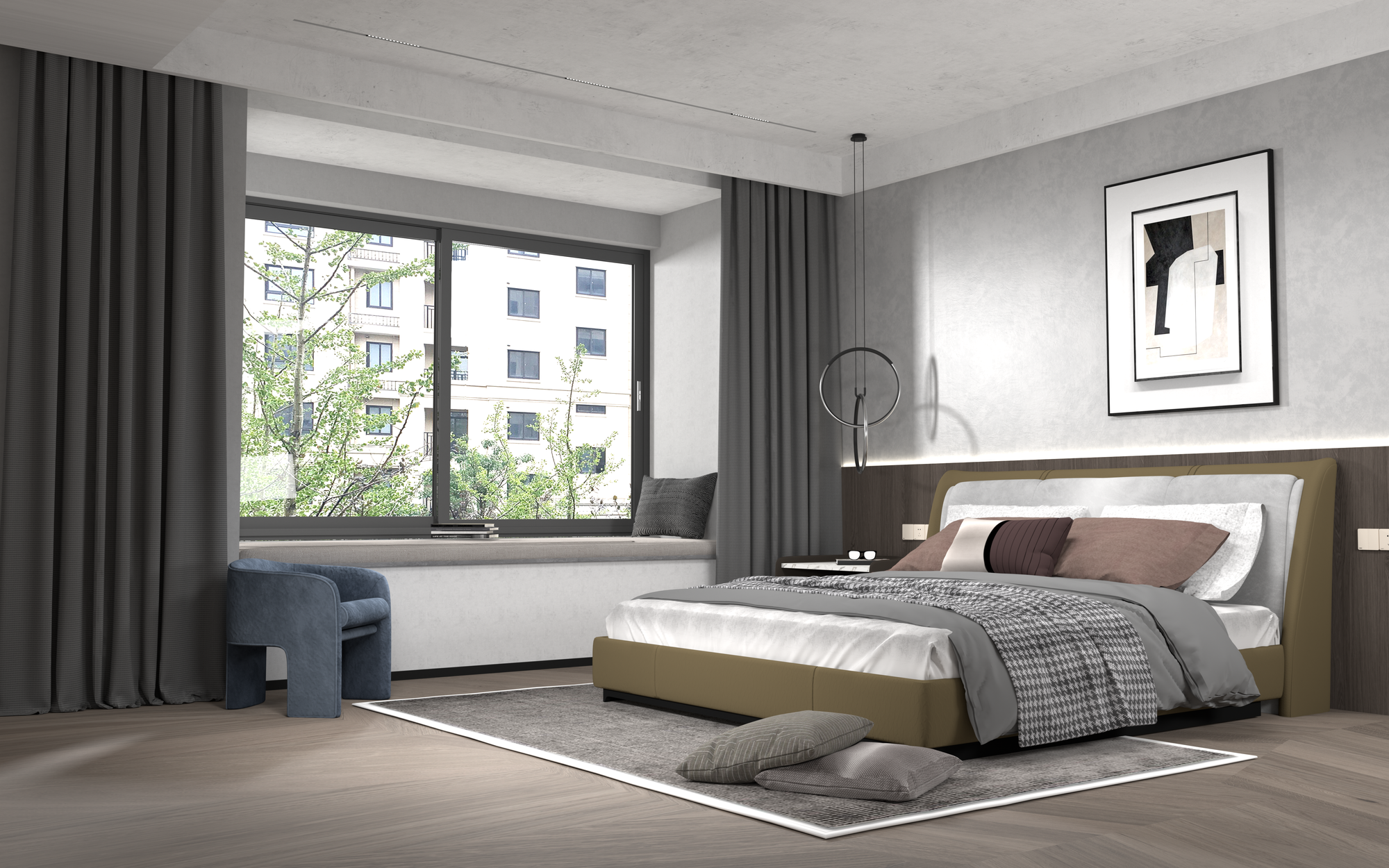

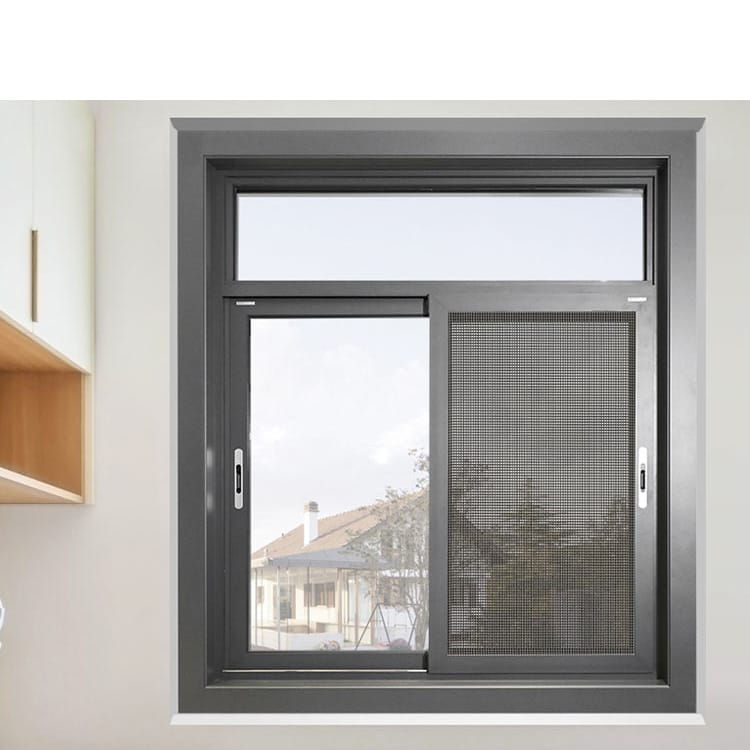

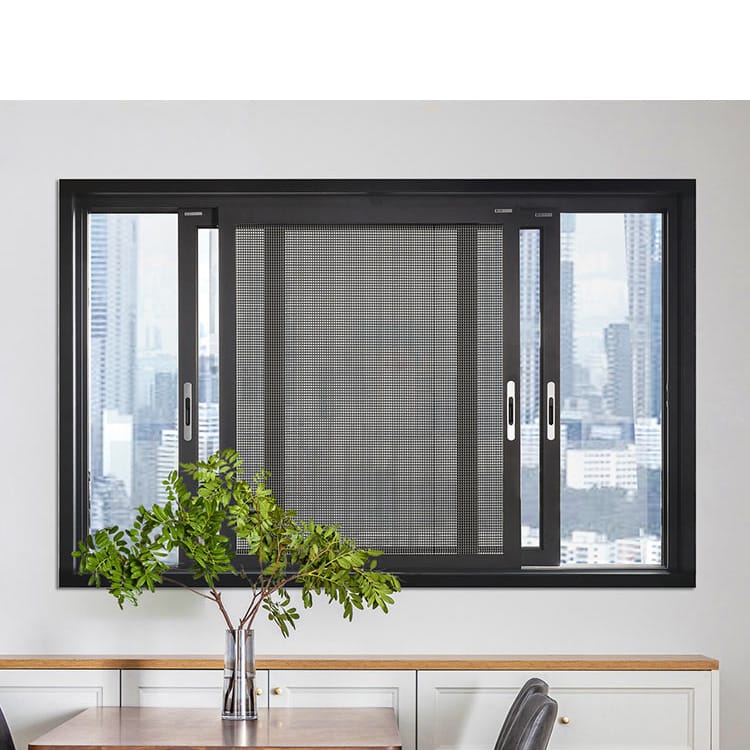

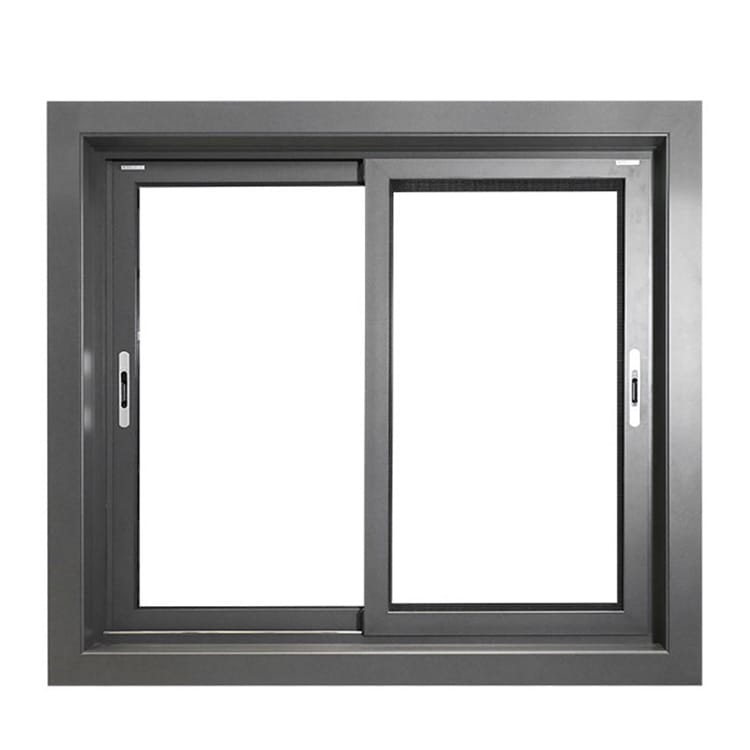

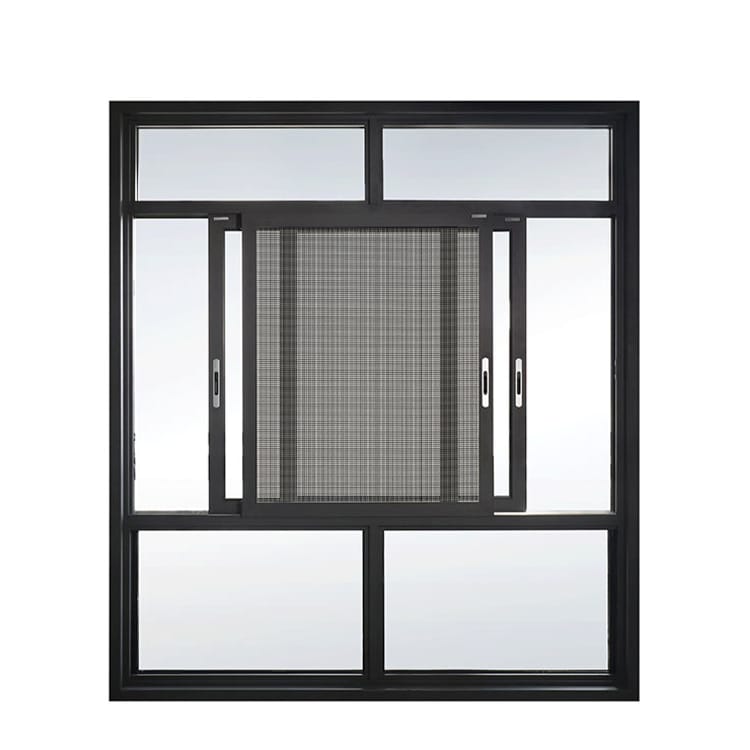

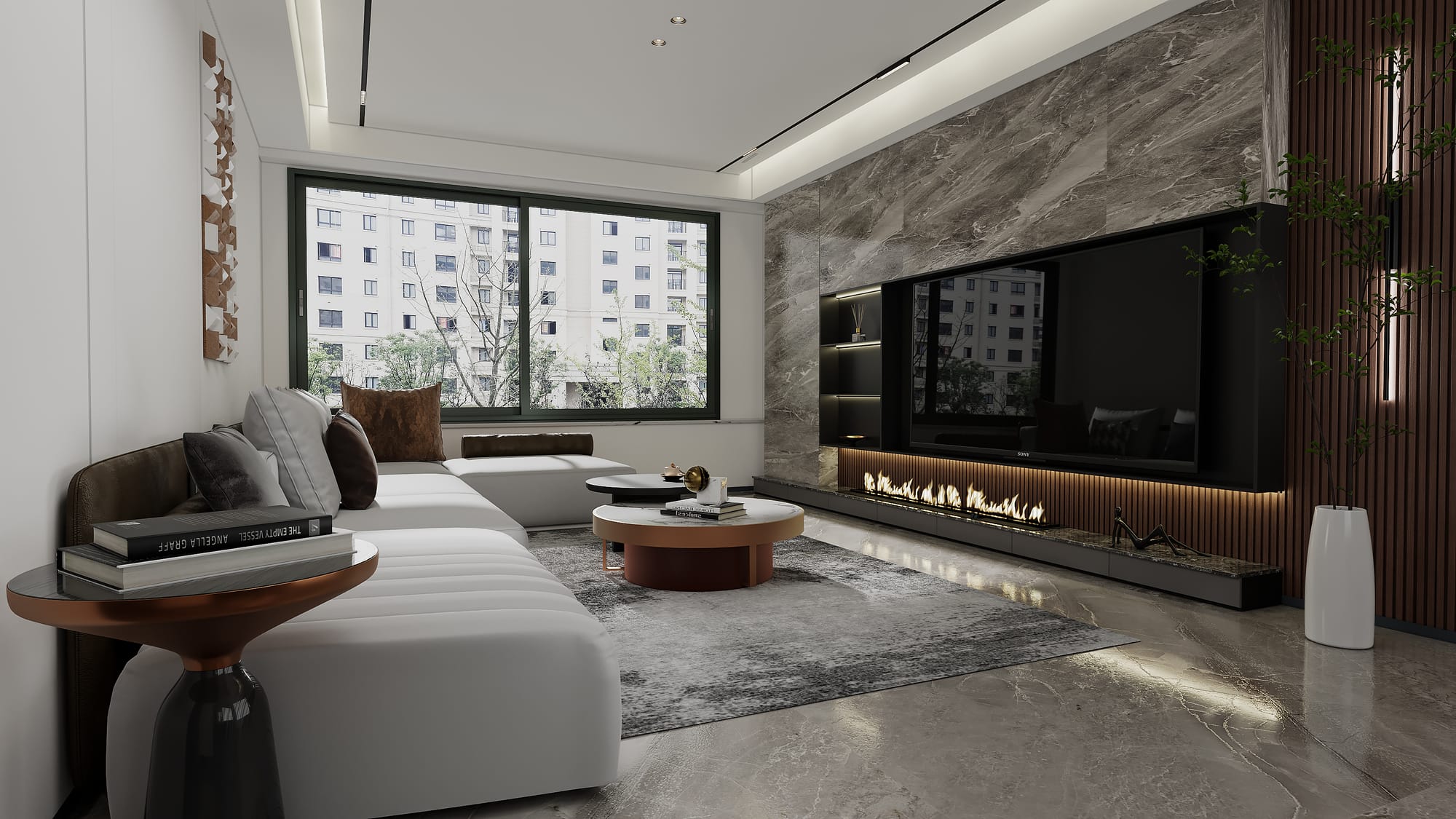

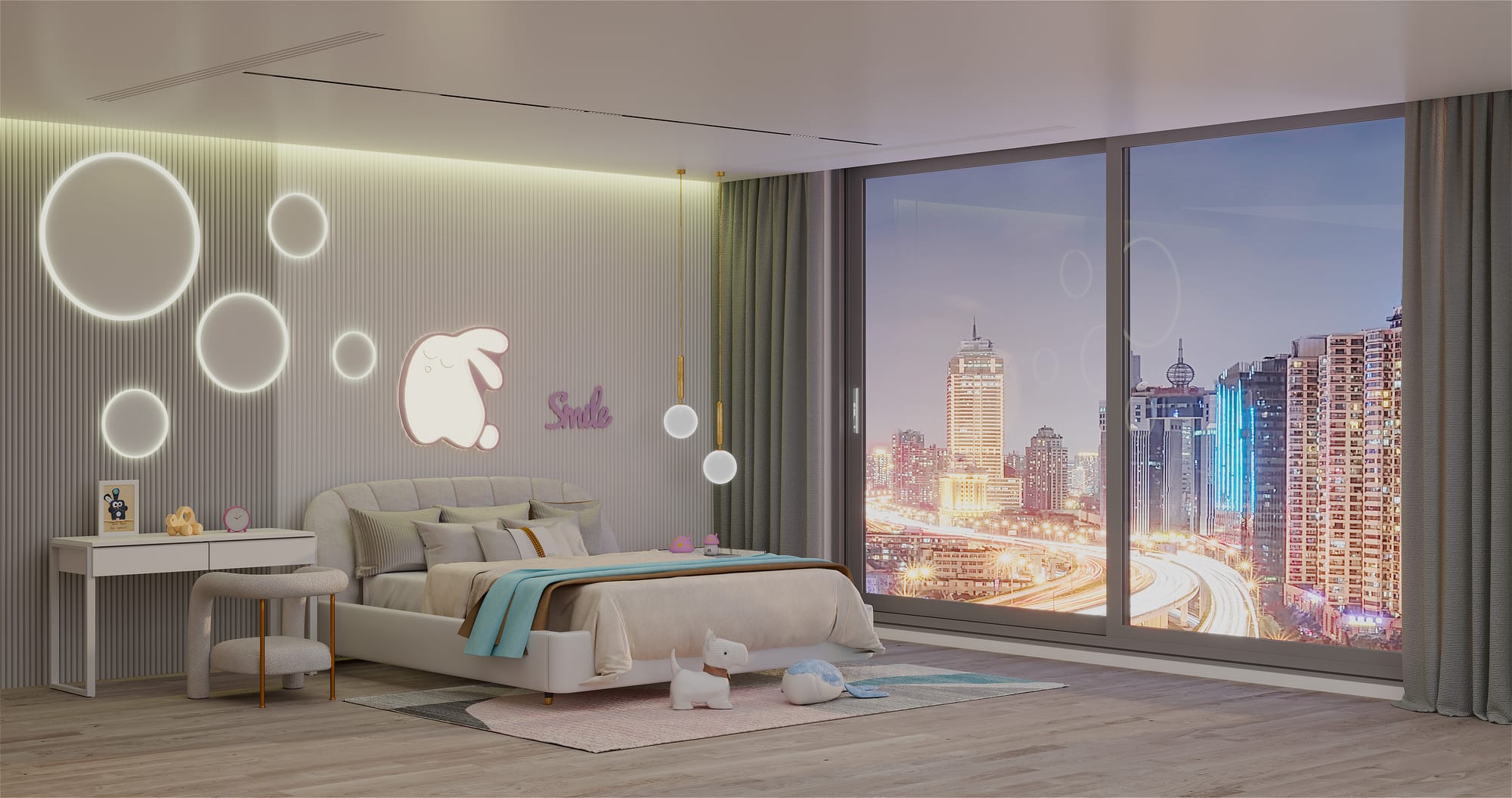

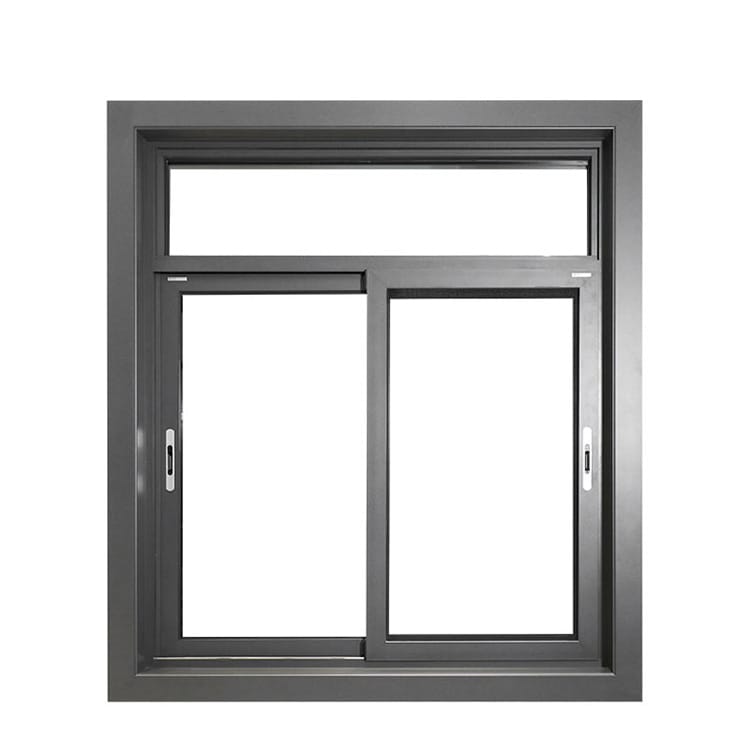

Sliding Window

MYX HOUSE

For Your Lovely Home

Glass:Double Tempered Glass with argon ags
5mm+12A+5mm (PVDF Aluminum Strip Between double glass)
Profile: 6063-T5 aluminum profile
Profile Thinckness: 1.8MM
Frame width:
Two Tracks: 94MM/ Three Tracks: 121MM；
Four tracks: 95MM/ Five tracks: 133MM;
123MM
Flush Lock: Side Mounted Hidden Automatic Hook Lock
Lock point: Automatic Hook Lock
Hardware: Customized silent pulley
Insulation strip: Standard
Opening Way:
Two Tracks/ Three Tracks;
Four tracks/ Five tracks
Optional package: New 48 Pack/ New 88 Pack
Sealing material:
EPDM rubber strip;
Standard Jiangyin Haida rubber strip
Available Size:
Opening Panel ( Width: 350-1100/ Height: 500-2100);
Opening Panel ( Width: 500-2000/ Height: 500-1400)

0:00

/1:11

The overall use of internal and external gluing process
The track adopts an internal high and external low high low track design
Embedded design of window sash material
The exterior design of the window sash material structure does not have a cavity

Glass: Double Tempered Glass with argon ags
5mm+12A+5mm (PVDF Aluminum Strip Between double glass)"
Profile: 6063-T5 aluminum profile
Profile Thinckness: frame 2.0MM ,sash 2.2MM
Frame width: 132MM
Handle YALE There is a base handle
Hardware: YALE Side pressure hardware
Insulation strip: Standard
Opening Way: One opening and one fixing/ Two opening and one fixing/ Two opening and two fixing/ Fixed up and down
Sealing material: EPDM rubber strip
Available Size: Opening Panel ( Width:600-1500/Height:100-2600)

Open the fan and fix the position using internal and external rubber strip technology
