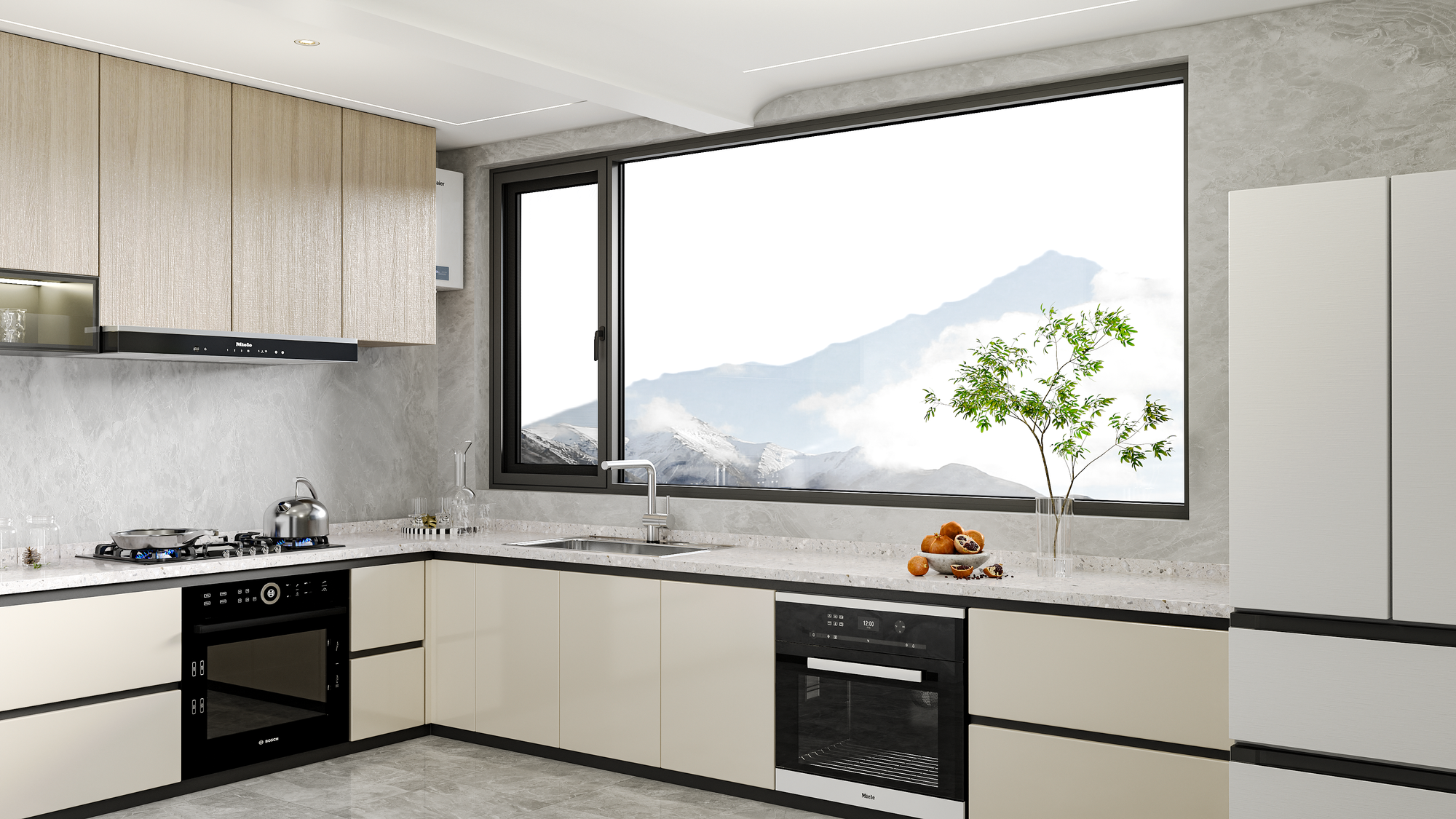

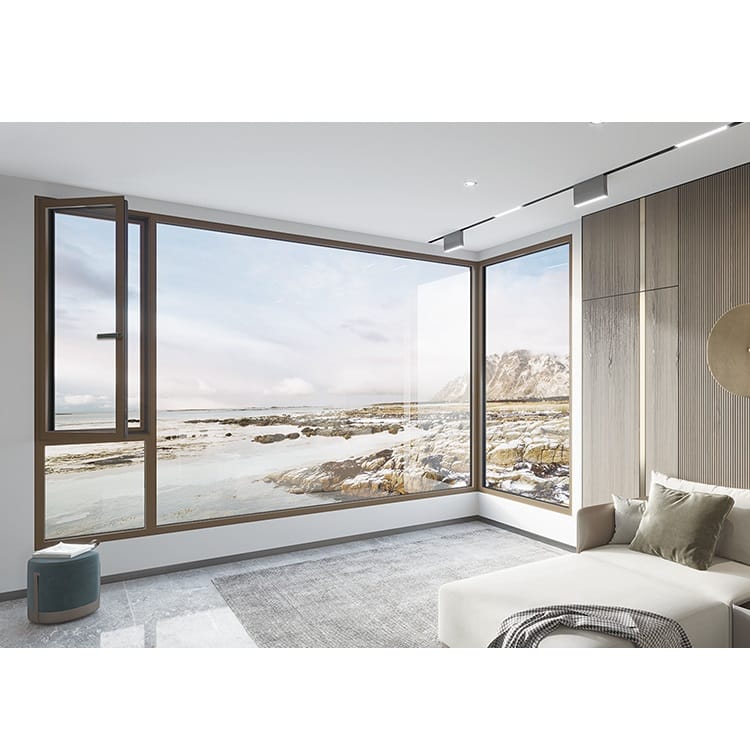

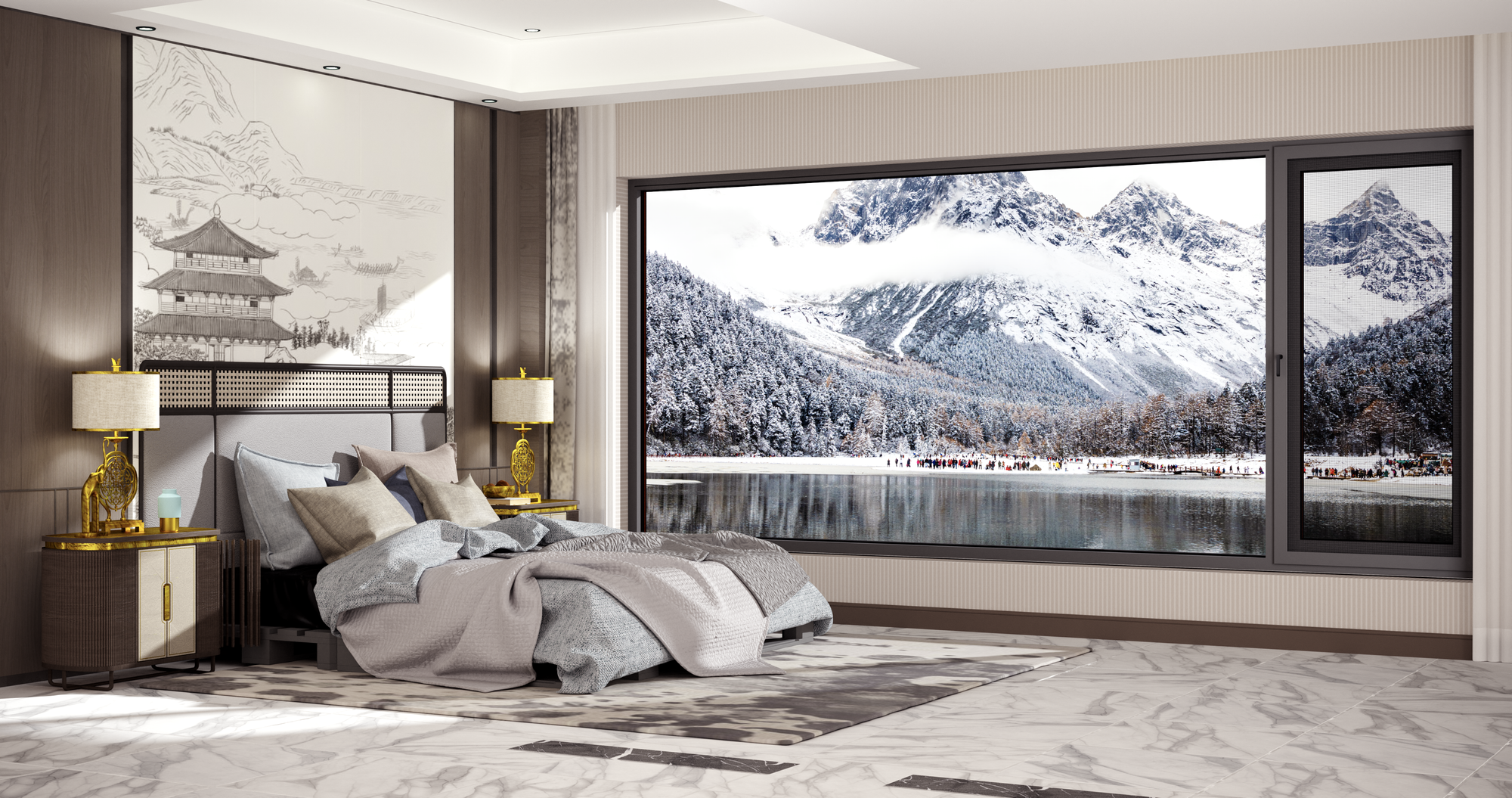

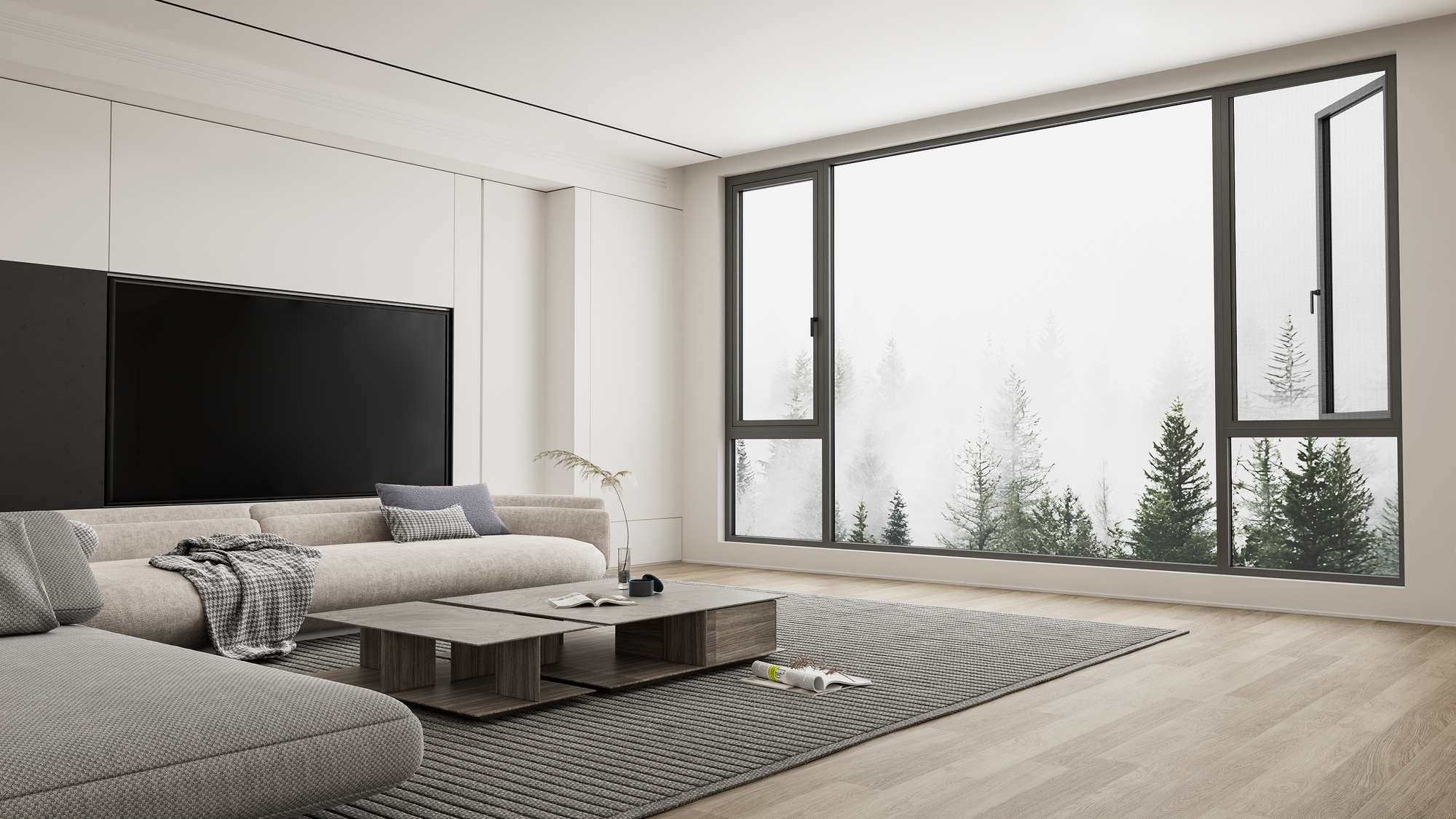

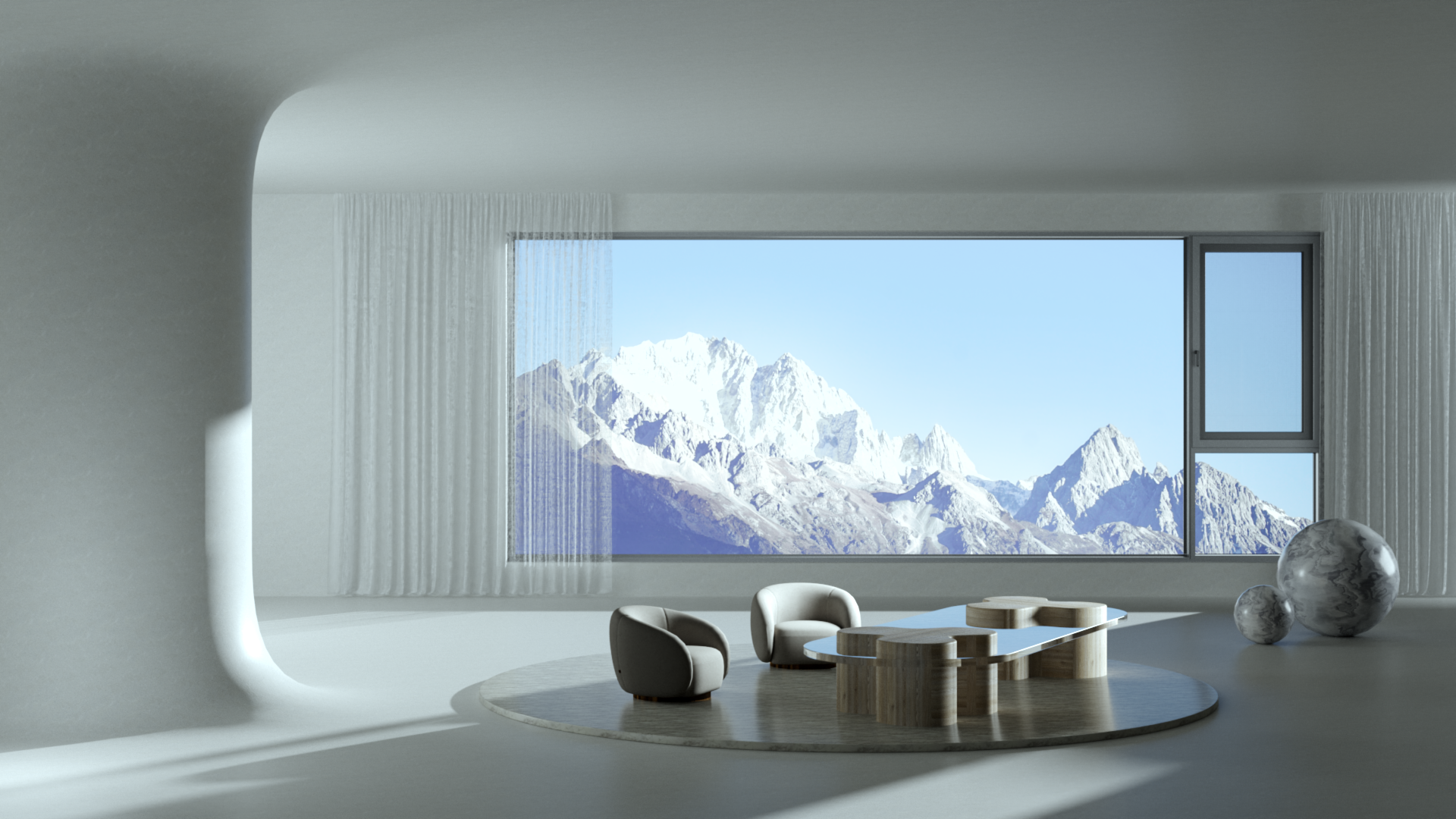

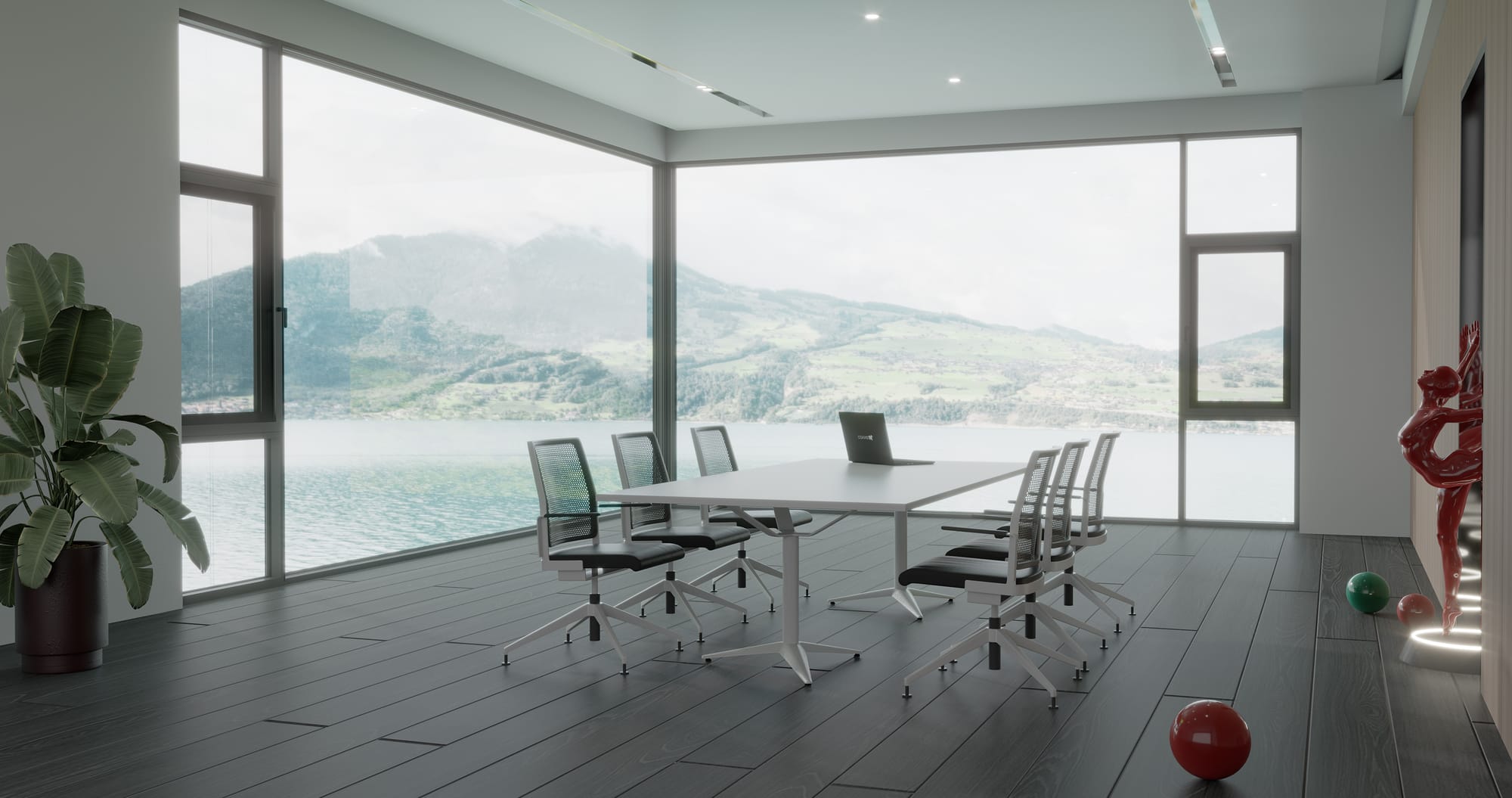

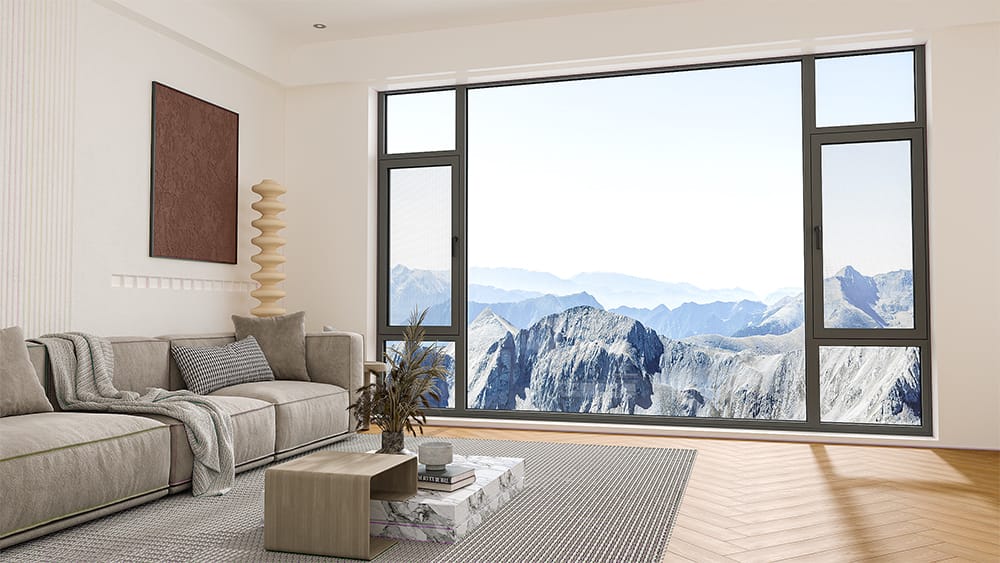

Casement Window

MYX HOUSE

For Your Lovely Home

PRODUCT PARAMETES

• Water tightness:650pa; 700pa
• Air tightness: 1.8m³/(m·h); 1.2m³/(m·h)
• Wind pressure resistance: 4.5Kpa; 5Kpa
• Sound insulation performance: 30dB; 35dB
• U-Factor(U.S./1-P): 0.23
• SHGC: 0.2; 0.25

Casement Window

• Glass:Double Tempered Glass with argon ags
  5mm+27A+5mm (PVDF Aluminum Strip Between double glass)
• Profile: 6063-T5 aluminum profile
• Profile Thinckness: 1.5MM; 1.8MM
• Handle: WEHAG Handle in Black and Sliver
• Hinge: WEHAG Hinge
• Frame width: 77MM; 82MM; 100MM; 104MM; 109MM; 118MM; 127MM
• Lock point:
  Black Six Point Lock(Invention patent);
  Black Two Point Lock(Invention patent);
  Customized Black Zinc Alloy Six Point Lock
• Insulation strip: Standard
• Opening Way: Outward Opening / Awning
• Optional package: New 48 Pack/New 88 Pack
• Sealing material: EPDM rubber strip; Standard Jiangyin Haida rubber strip
• Available Size:
  Opening Panel ( Width:350-700/Height:400-1600);
  Opening Panel ( Width:350-750/Height:400-1500);
  Opening Panel ( Width:350-750/Height:400-1600);
  Opening Panel ( Width:400-750/Height:400-1500);

PRODUCT PROCESS

• Process of applying cross-sectional adhesive at a 45° angle to the outer frame and glass fan
• Whole frame two-component injection molding process

PRODUCT PARAMETES

• Water tightness: 700pa
• Air tightness: 1.2m³/(m·h)
• Wind pressure resistance: 5Kpa
• Sound insulation performance: 35dB
• U-Factor(U.S./1-P): 0.23
• SHGC: 0.2; 0.25

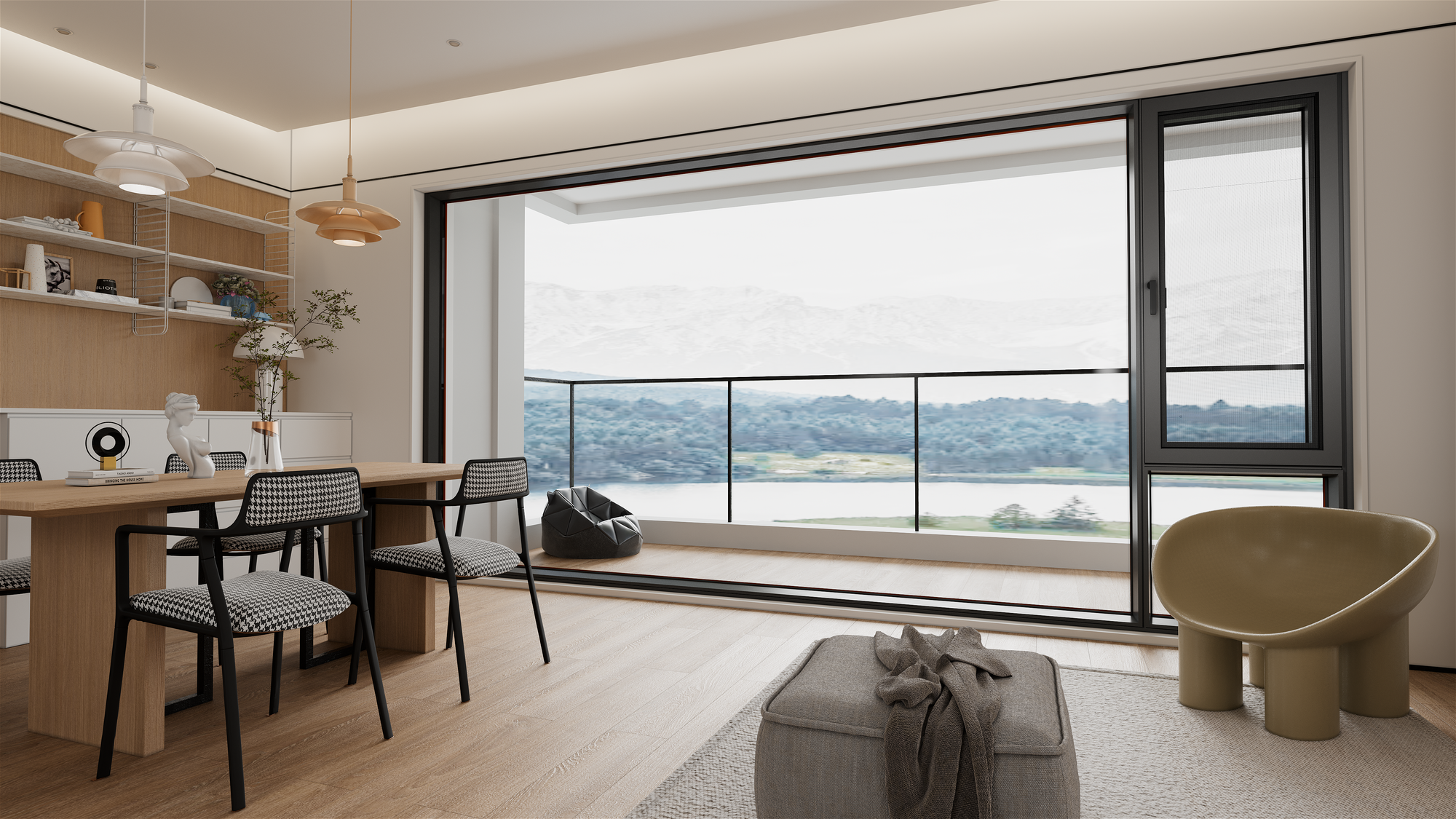

Inward Opening Window

• Glass: Double Tempered Glass with argon ags
  5mm+27A+5mm ; 6mm+16A+6mm
  (PVDF Aluminum Strip Between double glass)
• Profile:
  6063-T5 aluminum profile
• Profile Thinckness:2.0MM
• Frame width: 85MM; 94MM; 96MM; 104MM; 112MM; 114MM
• Handle:
  Customized non base safety Handle in Black and Sliver;
  WEHAG No pedestal handle(Black and Sliver);
  WEHAG Handle in Black and Sliver
• Hinge: Customized flat open friction Hinge
• Hardware:
  Customized version 180° Tilt and Turn Accessories;
  WEHAG 180° Tilt and Turn Accessories;
  WEHAG 90° Tilt and Turn Accessories
• Insulation strip:Standard
• Opening Way: Tilt and Turn/Inward opening
• Optional package: New 48 Pack/New 88 Pack
• Sealing material: EPDM rubber strip; Standard Jiangy in Haida rubber strip
• Available Size:
  Opening Panel ( Width:480-850/Height:600-1800);
  Opening Panel ( Width:480-850/Height:600-2400);
  Opening Panel ( Width:510-850/Height:600-2400)

PRODUCT PROCESS

• Process of applying cross-sectional adhesive at a 45° angle to the outer frame and glass fan
• Whole frame two-component injection molding process
