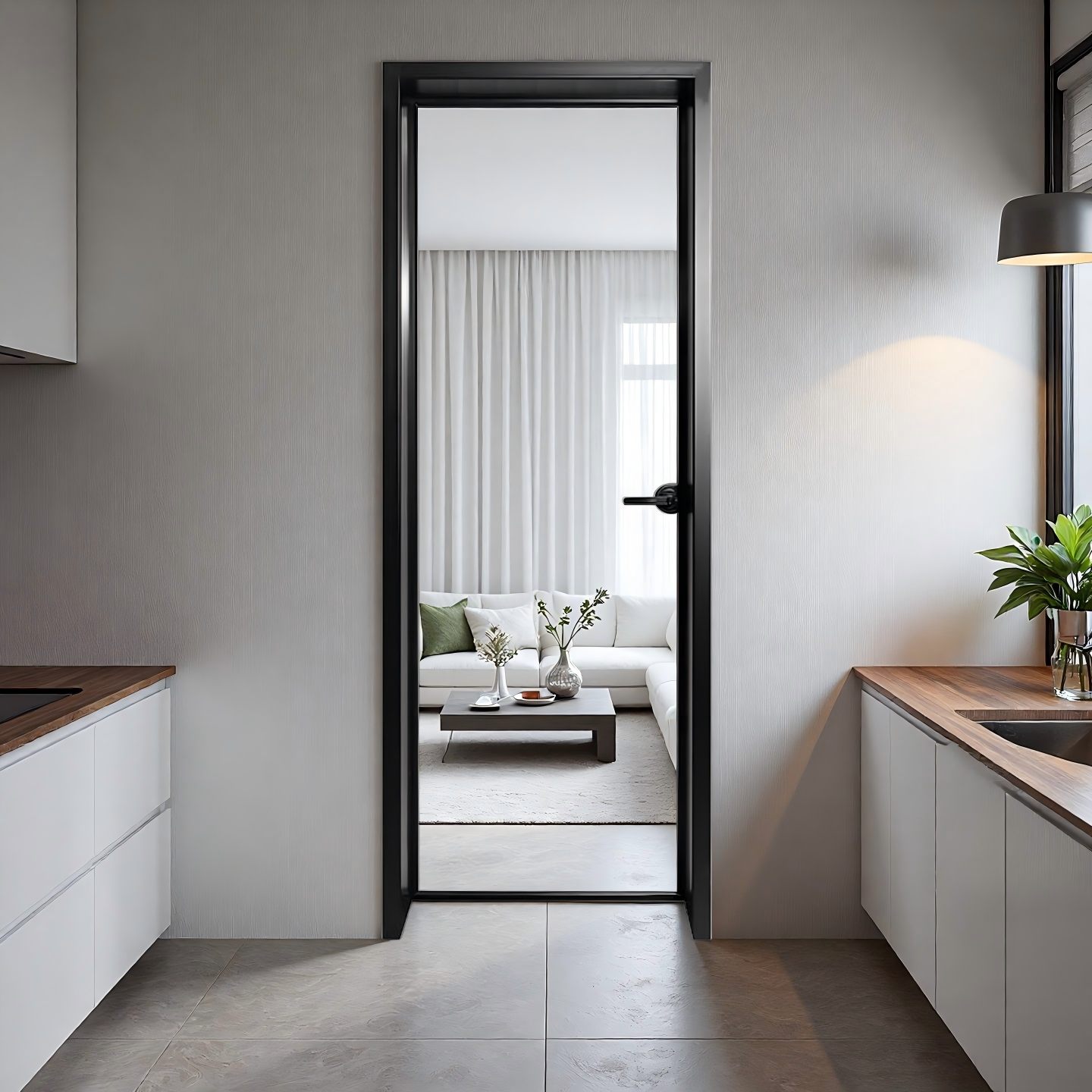

Casement doors
PRODUCT PARAMETES
- Water tightness: 300pa; 450pa
- Air tightness: 4.5m³/(m·h); 5m³/(m·h)
- Wind pressure resistance: 3Kpa; 5Kpa
- Sound insulation performance: 30dB; 37dB
- U-Factor(U.S./1-P): 0.28; 0.39
- SHGC: 0.2; 0.25

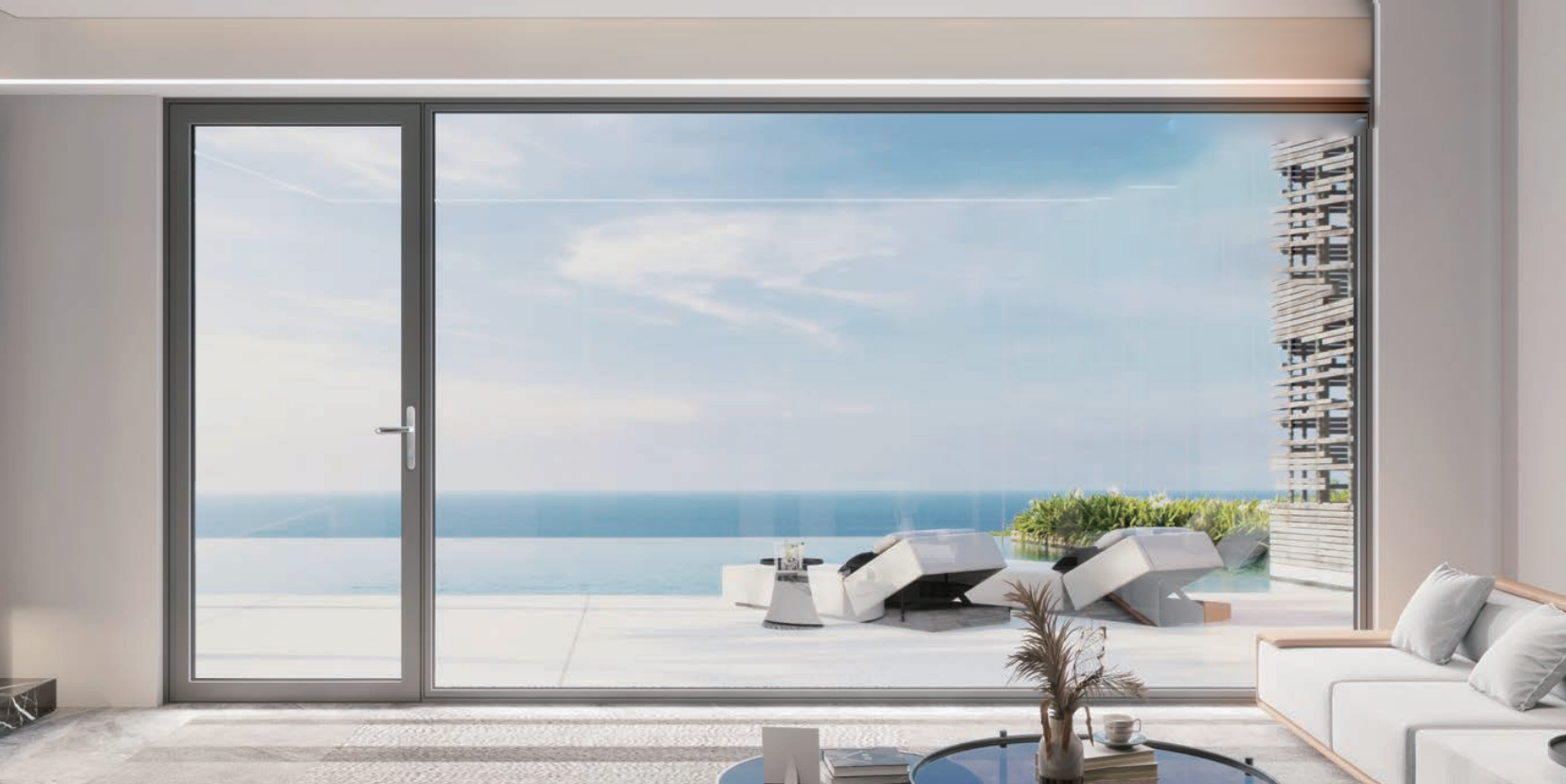

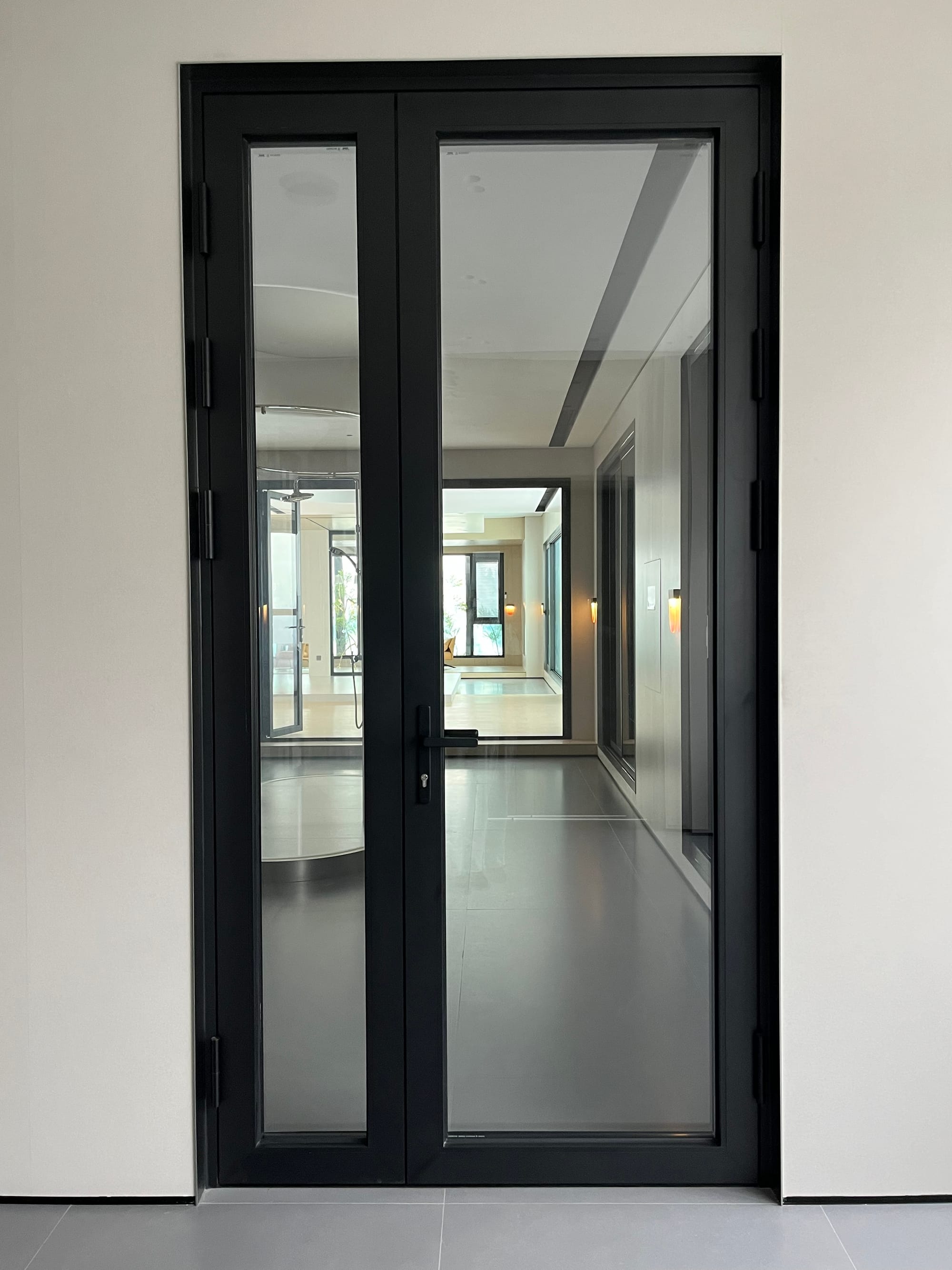

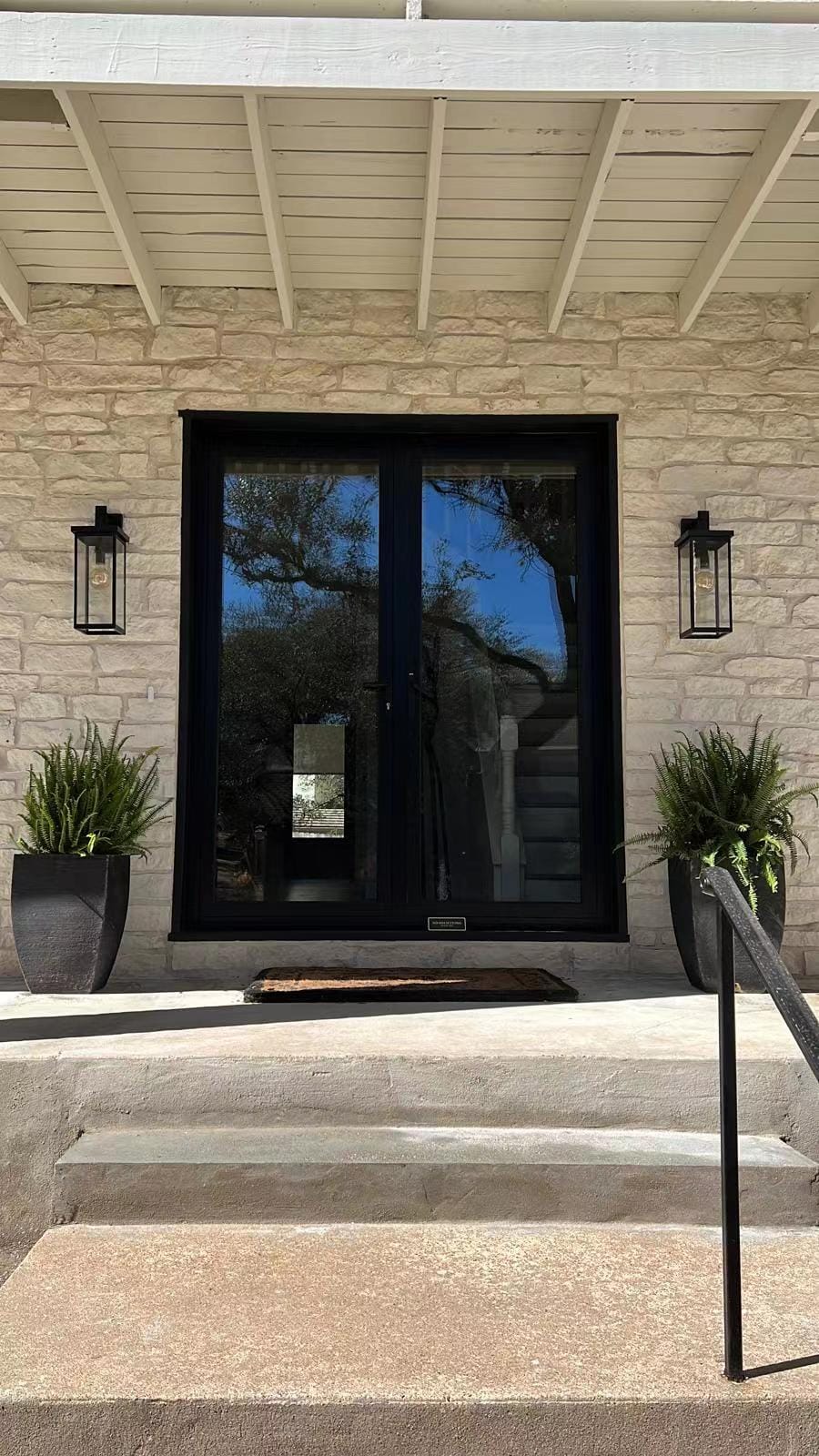

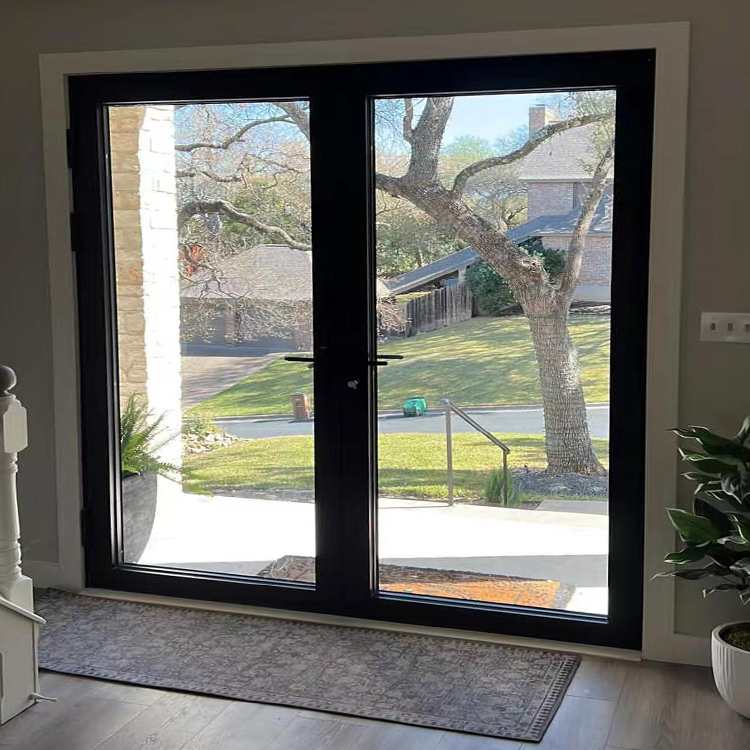

Swing Door
- Glass:
Double glazing:5mm+12A+5mm, Single Glazed:8MM tempered glass;
Double Tempered Glass with argon ags 5mm+27A+5mm (PVDF Aluminum Strip Between double glass) - Profile: 6063-T5 aluminum profile
- Profile Thinckness:
Frame 1.4mm, door leaf 2.0mm;
Frame 1.45mm, door leaf 1.2mm;
2.0mm - Frame width: 54mm; 103mm
- Handle: Customized handle
- Hardware: Customized hinges
- Optional package:
New 32 Pack;
New 48 Pack/New 88 Pack - Insulation strip: Standard
- Opening Way:
Open externally and open internally;
Single door, double door, parent-child door - Sealing material: EPDM rubber strip
- Available Size:
Opening Panel ( Width:350-850/Height:400-2400);
Opening Panel ( Width:600-850/Height:1800-2500);
Opening Panel ( Width:350-1100/Height:800-2800)
0:00
/0:45
PRODUCT PROCESS
- Opening the fan adopts gluing process
- Fixing position adopts pressing glue strip process
